2N5460

Information - Help
ID = 47017

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   Universal
Identical to 2N5460
Similar Tubes
Normally replaceable-slightly different:
  2N5462
Other base and data slightly different:
  КП103

Base Wires
Description Silicon low noise P-channel junction FET for universal purpose.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   TTT Steidle 1981

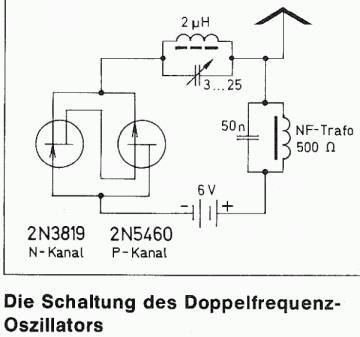

2N5460: Funktechnik 15/76 Seite 470
Egon Strampe

to92_gds_1.gif 2N5460: TVT 1969 Verlag Nolde Dachau
Günther Stabe † 19.8.20

2N5460: Motorola
Thomas Günzel † 1.8.22

More ...
Usage in Models 1= 1975

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
