45Z3

Information - Help
ID = 5773

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  High-vacuum Rectifier   Power-supply
Identical to 45Z3
First Source (s)
01.Apr.1941 : Electron Tube Registration List

Base Miniatur-7-Pin-Base B7G, USA 1940 (Codex=Zb)
Was used by Radio/TV-reception etc.
Filament Vf 45 Volts / If 0.075 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49
  45Z3: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

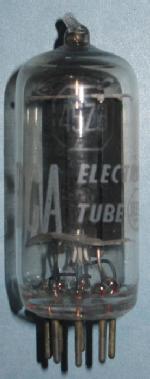

45Z3: Collection Patrice ZEISSLOFF
Patrice Zeissloff


45Z3: Telefunken Werkstattbuch
Wolfgang Bauer


45Z3: Sylvania Technical Manual
Peter Hoddow


from Just Qvigstad

Usage in Models 2= 1941 ; 1= 1942?? ; 6= 1942? ; 2= 1942

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):11
