4X150G

Information - Help
ID = 31917

Country:
United States of America (USA)
Brand: Eimac (brand name)
Tube type:  Transmitting Tetrode, air cooled   UHF
Identical to 4X150G = 8172 = CV3893 = QV1-150G
First Source (s)
25.Jun.1962 : Tube Lore (I)

Filament Vf 2.5 Volts / If 6.25 Ampere / Half indirect
Description

Similar to 4X150A with coaxial base. Max frequency raised to 500MHz CW or to 1500MHz pulse.


Tube prices 1 Tube prices (visible for members only)
Information source - - Manufacturers Literature
Tube Lore (I)

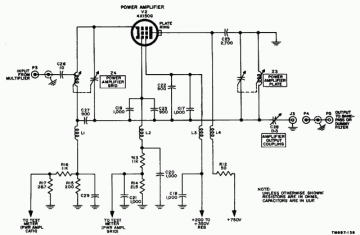

  4X150G: AM-915/TRC Manual
Anonymous 88 Collector

4X150G: rdstuff.com
Günther Stabe † 19.8.20


4X150G: EIMAC Datasheet
Günther Stabe † 19.8.20


Usage in Models 1= 1960??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
