501A

Information - Help
ID = 71576

Country:
United States of America (USA)
Brand:
Developer: General Electric Co. (GE); Bridgeport CT, Syracuse NY
Tube type:  Triode, vacuum   Audio Frequency
Identical to 501A
Similar Tubes
Heater different:
  C301A ; UV201A

Base UV-Base (4 Pins+Bayonet, USA 1914 WE)
Was used by Radio/TV-reception etc.
Filament Vf 5 Volts / If 0.179 Ampere / Direct / Battery =
Dimensions (WHD)
incl. pins / tip
x 108 x 45 mm / x 4.25 x 1.77 inch
Weight 47 g / 1.66 oz
Information source - - Manufacturers Literature
-- Collector info (Sammler)

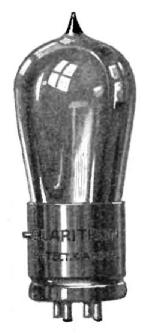

uv_triode_tube~~144.png 501A: Fin Stewart
Fin Stewart


Just Qvigstad


501A
