5652

Information - Help
ID = 50925

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Developer: RCA (RCA Victor Co. Inc.); New York (NY)
Tube type:  Photocell High vakuum
Identical to 5652
Similar Tubes
Differences not known by us:
  1645 ; 1645A

Base Octal (Int.Octal, IO) K8A, USA 1935
Filament --/--
Description

Composite anode-photocathode, side-on type having S-4 response.  Wavelength of maximum spectral response is 4000 +/- 500 angstroms. This type has two flat photoemissive electrodes positioned at right angles to each other, either of which can be used as a photocathode or as an anode. In addition,  a balancing capacitance (C2) is provided within the tube. Has a non-hygroscopic base.


Dimensions (WHD)
incl. pins / tip
33 x 73 x mm / 1.30 x 2.87 x inch
Weight 31 g / 1.09 oz
Information source - - Manufacturers Literature

5652: Manufacturer's Literature
Emilio Ciardiello

2ab_5652_pin.png 5652: Manufacturer's Literature
Emilio Ciardiello


Just Qvigstad

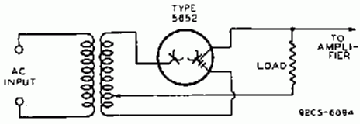

5652: Manufacturer's Literature
Emilio Ciardiello

More ...
