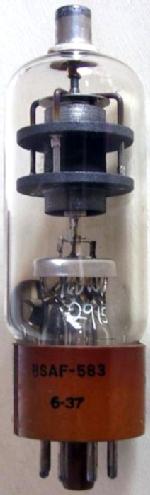

583

Information - Help
ID = 33284

Country:
United States of America (USA)
Brand: United Electronics Co.; Newark, NJ
Tube type:  High-vacuum Rectifier   Power-supply
Identical to 583

Base Octal (Int.Octal, IO) K8A, USA 1935 Top contact with a cap.
Was used by Radar
Filament Vf 2.5 Volts / If 5 Ampere / Direct / Specified voltage AND current AC/DC
Description

Clipper-rectifier for radar modulators, 17KV PIV, 65 mA. Graphite anode.
Made by National Union, Raytheon, United Electronics and Tung Sol.


Dimensions (WHD)
incl. pins / tip
x 132 x 37 mm / x 5.20 x 1.46 inch
Weight 65 g / 2.29 oz
Information source Tube Lore (I)   and Tube Lore II, p. 162
- - Manufacturers Literature   Frank's Tube Data Sheets

583~~2.png 583: Manufacturer's Literature
Emilio Ciardiello


Just Qvigstad

Collection of



583
