58TF1

Information - Help
ID = 20252

Country:
Italy
Brand: Magnadyne Radio; Torino
Tube type:  Triode+Double-Beam Power Tube   Audio Frequency
Identical to 58TF1

Was used by Radio/TV-reception etc.
Filament Vf 58 Volts / If 0.15 Ampere / Indirect / Specified current AC/DC ~ = (Series working)

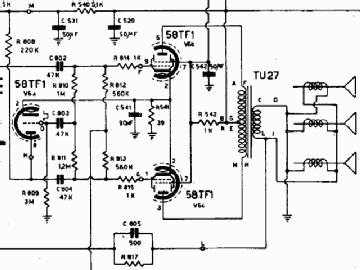

58TF1: Magnadyne FM51 radio set schematic
Giuseppe Feniello

58tf1_2.png 58TF1: Magnadyne tube manual
Giuseppe Feniello

58TF1: Magnadyne tube manual
Giuseppe Feniello

Usage in Models 1= 1957?? ; 1= 1959?? ; 2= 1959 ; 1= 1960?? ; 1= 1960 ; 1= 1961?? ; 1= 1962 ; 1= 1964??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):9
