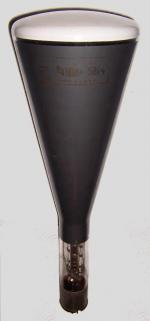

5BP4

Information - Help
ID = 20784



Tube type:  Television picture tube black+white
Identical to 5BP4 = VT-111 = CV836 = 1802-P4

Base 11-Pin-USA-old
Filament Vf 6.3 Volts / If 0.6 Ampere / Parallel, (AC/DC)
Description Leuchtfarbe weiß, Schirm Ø 133 mm
Dimensions (WHD)
incl. pins / tip
x x 425 mm / x x 16.73 inch
Weight 620 g / 21.87 oz

5BP4: M.S.
Michael Schlör


5BP4: M.S.
Michael Schlör



Usage in Models 1= 1939? ; 2= 1939 ; 1= 1952 ; 1= 1956??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):5
