6AM6S

Information - Help
ID = 25645

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Vacuum Pentode   RF/IF-Stage
Identical to 6AM6S
Similar Tubes
Normally replaceable-slightly different:
  5A/160K
Other class quality (otherwise equal):
  5A/160H ; 6AM6 ; EF91 ; N79
Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 6.3 Volts / If 0.3 Ampere / Indirect / Specified voltage AND current AC/DC
Description

Engere Toleranzen gegenüber 6AM6. Herstellung weltweit, z.B. Frankreich CSF, GB durch Mullard etc.


6AM6S: Courtesy Bureau Belper (De Muiderkring, Bussum)
Anonymous 10 Collector

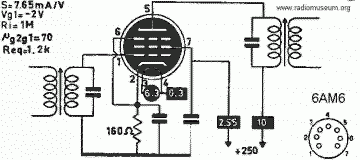

6am6s_so.png 6AM6S: ARRL Handbook 1972
Anonymous 10 Collector

Just Qvigstad 		6am6s-doc.png
6AM6S: Manufacturers data
Patrice Zeissloff
Usage in Models 1= 1960??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1

Collection of

Danko Tkalec (HR)
Georges Werts (B)
Mauro Minghetti (I)
Peter Pfeiffer (D)
Patrice Zeissloff (F)
Karl - Heinz Bossan (D)


6AM6S
