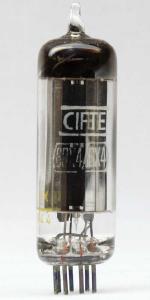

6BX4/6X4
|
Country:
France
|
|
| Identical to |
6BX4/6X4
= 6BX4
|
| First Source
(s) |
1960 : - - Manufacturers Literature
|
| Base |
Miniatur-7-Pin-Base B7G, USA 1940
|
| Was used by |
Radio/TV-reception etc. |
| Filament |
Vf 6.3 Volts / If 0.6 Ampere / Indirect / Specified voltage AC/DC |
| Description |
C- input - filter:
U-inp rms = 2 * 350 V AC max.
R-inp = 2 * 300 Ohms min.
I-dc = 90 mA max.
C-inp = 50 µF max.
V^-invers = -1350 V max.
L- input - Filter:
U-tr eff. = 2 * 450 V AC max.
I-dc = 90 mA max.
V^-invers = -1350 V max.
L-inp = 8 H min.
Text in other
languages (may
differ)
|
|
|
|
Just Qvigstad
|
|
Collection of
Collection of a member from FIN |
|
|
|
