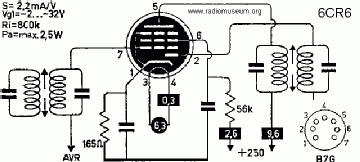

6CR6

Information - Help
ID = 3881

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Diode-Pentode   Audio Frequency
Identical to 6CR6
First Source (s)
15.Jan.1954 : Electron Tube Registration List
Predecessor Tubes 6SF7
Base Miniatur-7-Pin-Base B7G, USA 1940
Filament Vf 6.3 Volts / Indirect
Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
Tube Tester Data Avo CT160
6CR6: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Anonymous 10 Collector
mi116_g.gif 6CR6: RTT Schwandt
Günther Stabe † 19.8.20

Just Qvigstad 		6cr6_rca_data_01.png
6CR6: orig. data sheet
Anonymous 10 Collector
More ...
Usage in Models 4= 1949 ; 2= 1950 ; 4= 1953? ; 8= 1954? ; 2= 1954 ; 1= 1955?? ; 7= 1955? ; 6= 1956? ; 5= 1957? ; 2= 1958? ; 1= 1958 ; 3= 1959? ; 4= 1959
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):49

Collection of

George Papaiz (CDN)
John Albion (CDN)
Danko Tkalec (HR)
Aires Gomes (P)
Tomasz Szczesniak (PL)
Peter Pfeiffer (D)
Collection of a member from D


6CR6
