6HS5

Information - Help
ID = 4929



Tube type:  Sharp cutoff beam triode
Identical to 6HS5
Base Duodecar 12-pin, B12C Glass (USA 1961)
Filament Vf 6.3 Volts / If 1.5 Ampere / Indirect / Specified voltage AC/DC
Tube prices 1 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
6hs5_sockel.png 6HS5: RCA Tube Manual
Peter Hoddow

Just Qvigstad 		6hs5_techdat01.png
6HS5: RCA Tube Manual
Peter Hoddow

Collection of

Collection of a member from FIN



Forum contributions about this tube
6HS5
Threads: 1 | Posts: 1
Hits: 3393     Replies: 0
6HS5 Forward grid bias
Joe Sousa
24.Jun.11 		  1
6HS5 Forward grid bias

 Fellow Radiophiles:

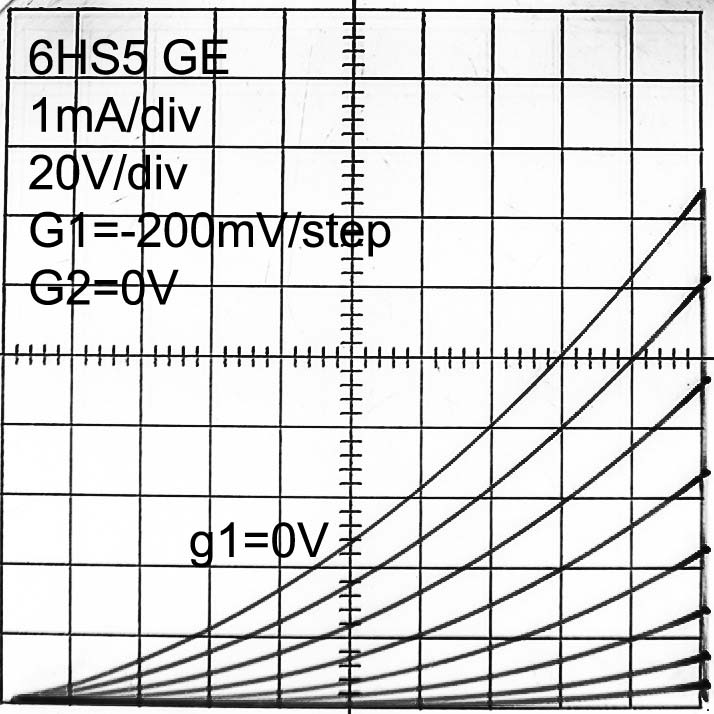

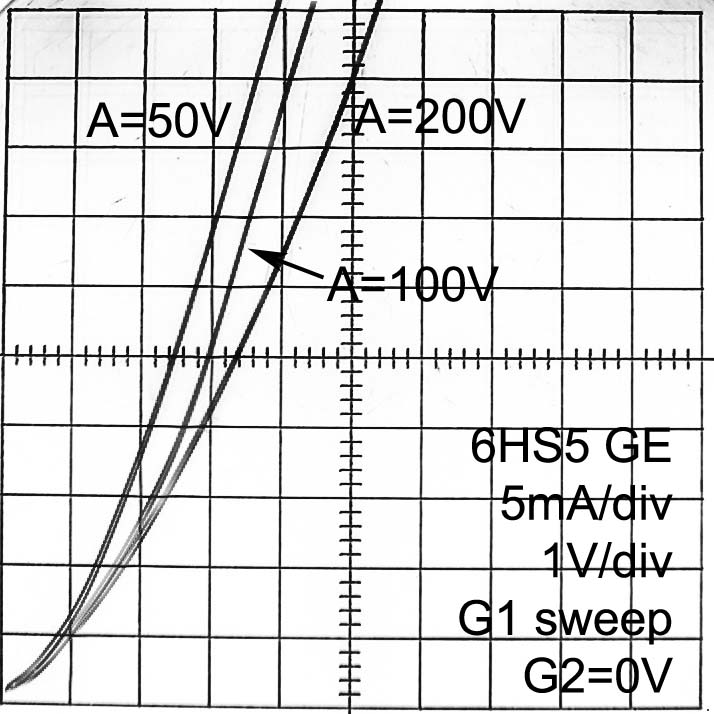

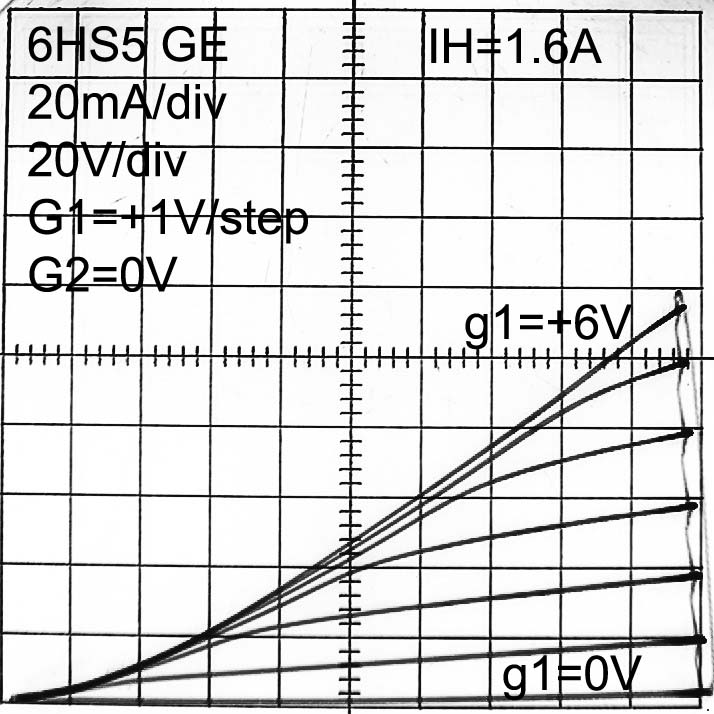

I continue here a curve trace survey for Power Beam Triodes in forward control grid bias. This topic was originally explored with the 6JD5.

Regards,

-Joe

6HS5
End of forum contributions about this tube
