875A

Information - Help
ID = 32131

Country:
United States of America (USA)
Brand:
Tube type:  High Voltage Half-Wave Mercury-Vapor Rec   Power-supply
Identical to 875A
Similar Tubes
Normally replaceable-slightly different:
  575A ; CV644 ; TL15
Predecessor Tubes 875
Base Jumbo 4-pin bayonet (1918) Top contact with a cap.
Was used by Transmittertube (Radio)
Filament Vf 5 Volts / If 10 Ampere / Direct
Description

Jumbo 4-pin base; equivalent to 575A.
Hytron, Taylor and TungSol known manufacturers.


Dimensions (WHD)
incl. pins / tip		 90 x 250 x mm / 3.54 x 9.84 x inch
Information source Tube Lore (II)   p. 80
Tube Lore (I)
-- Original prospect or advert
575a.png 875A: Manufacturer's Literature
Emilio Ciardiello

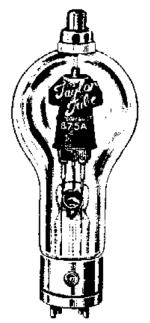

Just Qvigstad 		875_a_taylortube.png
875A: Taylor Tubes
Franz Scharner
