A206_Rectifier

Information - Help
ID = 32360

Country:
Great Britain (UK)
Brand: English Electric Valve Company Ltd. (EEV); Chelmsford
Tube type:  RECTIFIER TUBE (Detail uncertain)   Power-supply
Identical to A206_Rectifier

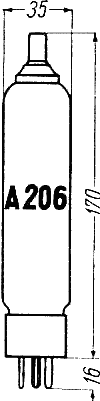

Base UX-Base (4 Pins (2 thick, USA 1924, UX) Top contact with a cap.
Filament Vf 2.5 Volts / If 6 Ampere / Direct
Description Upeak = 20 KV; Io = 25 mA; Ipeak = 270 mA
Information source Universal Vade-Mecum, Electron Valves and Semiconductor Devices

a206rect_sock.png A206_Rectifier: Universal Vade-Mecum, 1960
Anonymous 15 Collector


Just Qvigstad
A206_Rectifier: electronic univ. vademecum,Warszawa1964
Anonymous 384 Collector
