µA726

Information - Help
ID = 46760

Country:
United States of America (USA)
Brand: Fairchild Semiconductor Inc., South Portland/Maine
Tube type:  IC - Integrated Circuit   Universal
Identical to µA726

Base Wires
Description

Aufbau/Content: IC (2 Trans. + temp.stab.: 6 Trans., 6 Widerst., 2 Dioden);
Form/Case/Outline: TO-100 (µA726[C]);
Type/Application: Dual NPN Si-Transistors with equal data for differential purposes; additional temperatur regulation circuit;
Daten/electr.data: Vcc: +/- 15 V; Icc: 5 mA; Umax(Ucb): 40 V; Umax(Uce): 30 V; Pd: <500 mW; t op: -55...+125 °C (µA726C = 0...85 °C);
Ähnlich/similar: MIC726 (ITT, MIC726-5 = 0...70 °C, MIC726-1 = -55...+125 °C), ...
-


Dimensions (WHD)
incl. pins / tip
10 x 6 x 8 mm / 0.39 x 0.24 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Fairchild, ITT

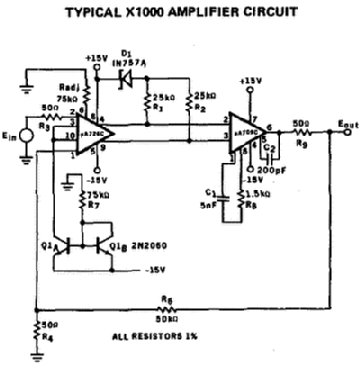

µA726: Fairchild
Günther Stabe † 19.8.20

to100_19.gif µA726: TTT Steidle 1981
Günther Stabe † 19.8.20

µA726: Elektor 03/1977 S.3-51
Günther Stabe † 19.8.20

More ...
