µA78Hxx

Information - Help
ID = 38113

Country:
Worldwide
Brand: Common type Worldwide tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to µA78Hxx
First Source (s)
Jun.1985 : -- Collector info (Sammler) elrad 1985 H.6 S.56

Base SPECIAL TUBEBASE in general
Filament Solid State
Description

All members of the 78H00 family (5 A) on one sheet...


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
27 x 40 x 10 mm / 1.06 x 1.57 x 0.39 inch
Weight 10 g / 0.35 oz
  µA78Hxx: elrad 1985 H.6 S.56
Günther Stabe † 19.8.20

µA78Hxx: Own collection
Glenn Moeller-Holst

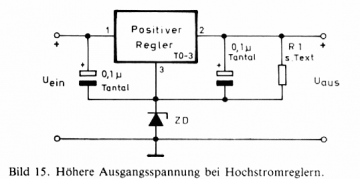

µA78Hxx: elrad 1985 H.6 S.55
Günther Stabe † 19.8.20
