AN3313
|
Country:
Japan
|
|
| Identical to |
AN3313
|
| Base |
SPECIAL TUBEBASE in general
|
| Description |
Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: DIP-14 (AN3313) | SOP-14 (AN3313S);

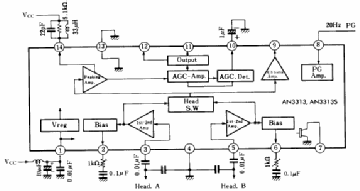

Application/Type: Head Amplifier for VTR (2-Head Type);
Daten/electr.data: Vcc: 5 V; Icc: 10...24 mA; Pd: <130 mW; t op: -20...+70 °C.
-
|
Dimensions (WHD)
incl. pins / tip |
18 x 7 x 8 mm / 0.71 x 0.28 x 0.31 inch |
| Weight |
1 g / 0.04 oz |
AN3313: Panasonic
Günther Stabe † 19.8.20
|
|
|
|
AN3313: Panasonic
Günther Stabe † 19.8.20
|
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
