AN6552

Information - Help
ID = 49252

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to AN6552
Similar Tubes
Normally replaceable-slightly different:
  RC4558
Other base and data slightly different:
  AN6551

Base SPECIAL TUBEBASE in general
Filament Solid State
Description

Aufbau/Content: IC (27 Trans., 17 Widerst., 4 Kond., 3 Dioden);
Form/Case/Outline: DIP-8;
Applikation/Type: Dual Operational Amplifier (OpAmp);
Daten/electr.data: Vcc max: 36 (+/-18) V (single/dual supply); N: 500 mW; Icc: __ mA; t op: -20...+75 °C.
Manufactured by Matsushita for Panasonic (J)
-


Dimensions (WHD)
incl. pins / tip
10 x 7 x 8 mm / 0.39 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Literature -- Original-techn. papers.
  AN6552: Panasonic
Günther Stabe

AN6552: G.S.
Günther Stabe


AN6552: Panasonic
Günther Stabe


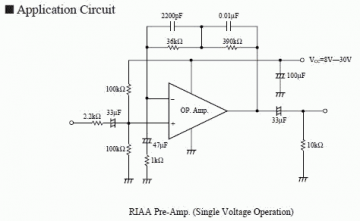

AN6552: Panasonic
Günther Stabe


Usage in Models 1= 1980??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
