AN7710

Information - Help
ID = 78574

Country:
Japan
Brand: Matsushita tubes; Osaka
Tube type:  IC - Integrated Circuit   Power-supply
Identical to AN7710

Base Wires
Was used by Radio/TV-reception etc.
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Kond., __ Dioden);
Form/Case/Outline: TO-220 (AN7710) | TO-220-Iso (AN7710F) = IN-GND-OUT;
Type/Application: 3-pin Low Dropout Voltage Regulator;
Daten/electr.data: U in: 13...23 V; U out: 10 V +/- 0.3 %; U in min= U out + 0.5 V; Iout max: 1.2 A; Pd: <15 W;
Family: AN7703 / AN7704 / AN7705 / AN7706 / AN7707 / AN7708 / AN7709 / AN7710 / AN7712 / AN7715 / AN7718 / AN7720 / AN7724
-


Dimensions (WHD)
incl. pins / tip
10 x 16 x 3 mm / 0.39 x 0.63 x 0.12 inch
Weight 2 g / 0.07 oz
Information source -- Original-techn. papers.   Panasonic

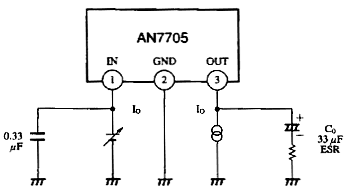

AN7710: Panasonic
Günther Stabe † 19.8.20

to_220_ttt~~526.gif AN7710: TTT Steidle 1981
Günther Stabe † 19.8.20
