AX225

Information - Help
ID = 79998

Country:
United States of America (USA)
Brand: Westinghouse El. & Mfg. Co. - see also Canadian W.
Developer: Westinghouse El. & Mfg. Co. - see also Canadian W.
Tube type:  Triode, vacuum   Audio Frequency
Identical to AX225
Similar Tubes
Different connections:
  UX225_5pin

Base UX-Base (4 Pins (2 thick, USA 1924, UX)
Was used by Radio/TV-reception etc.
Filament Vf 5 Volts / If 1 Ampere / Indirect / Parallel, (AC/DC)
Description This tube was first worked on at Westinghouse in 1922. It was made in very limited quantities and was also known as the AX225, UX225 and UY225.in April 1926. Any tubes with these designations are extremely rare. A single ended version was made with a 5 pin base in late 1926-early 1927. This tube was the forerunner of the UY227.
Dimensions (WHD)
incl. pins / tip
x 128 x 45 mm / x 5.04 x 1.77 inch
Weight 50 g / 1.76 oz
Literature -- Collector info (Sammler)

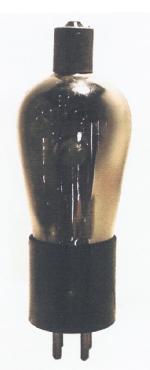

AX225: Bob Millard collection
Fin Stewart


AX225: Fin Stewart
Fin Stewart
