ID = 28999

Country:
United States of America (USA)
Brand: CeCo (tubes), C.E. Mfg. Co. Inc.; Providence, RI
Developer: General Electric Co. (GE); Bridgeport CT, Syracuse NY
Tube type:  Triode, vacuum   Universal
Identical to C_CeCo = 099_UV = C299 = 499
Similar Tubes
Normally replaceable-slightly different:
  UV199
Multiple differences or of other kind:
  199
First year Jul.1925 Saga of the Vacuumtube, Tyne page 344

Base UV-Base (4 Pins+Bayonet, USA 1914 WE)
Was used by Radio/TV-reception etc.
Filament Vf 3 Volts / If 0.06 Ampere / Direct / Battery =
Dimensions (WHD)
incl. pins / tip
x 110 x 45 mm / x 4.33 x 1.77 inch
Weight 49 g / 1.73 oz

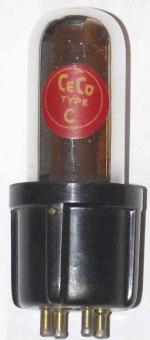

C_CeCo
David Clarke


C_CeCo: Fin Stewart
Fin Stewart
