DET20

Information - Help
ID = 17718

Country:
Great Britain (UK)
Brand: MO Valve Co. Ltd.; GB
Developer: MO Valve Co. Ltd.; GB
Tube type:  Triode, vacuum   VHF
Identical to DET20
Similar Tubes
Normally replaceable-slightly different:
  CV6

Base Octal (Int.Octal, IO) K8A, USA 1935
Filament Vf 6.3 Volts / If 0.17 Ampere / Indirect / Parallel, (AC/DC)

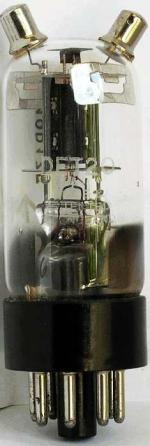

Description Horned triode with separate anode and grid top caps.
Meets the CV6 specification with a slightly lower heater current.
Classified as a transmitter tube (DET = Dull Emitter Transmitter), it was also used as a local oscillator.
Information source Taschenbuch zum Röhren-Codex 1948/49
-- Original-techn. papers.

DET20: DR eigene Sammlung
Anonymous 384 Collector


DET20: Beier 2, 1957
Anonymous 384 Collector


DET20: GEC's catalogue supplement
Anonymous 413 Collector


from Just Qvigstad

Collection of a member from D

Forum contributions about this tube
DET20
Threads: 1 | Posts: 2
Hits: 1501     Replies: 1
DET20 (DET20) UHF-Sende-Triode
Dietmar Rudolph
07.Aug.08
  1 Daten gemäß Beier 2, 1957:
Uf = 6,3V If = 0,17A (bei Beier ist ein Druckfehler: Uf = 0,3 V; Das kann nicht stimmen, da der Kaltwiderstand des Heizfadens ca. 18 Ω beträgt.)
Ua = 300V, Ia = 25 mA, S = 3mS, Ra = 8,3 kΩ, Na =3,5W, ce = 1pF, ca = 1pF, cg/a = 2,1 pF

DR
Roy Johnson
07.Aug.08
  2

6.3V at 0.17A is correct.

The CV6 specification is for 0.2A (or less) and the DET20 meets this specification.  The equivalence has been changed to "normally replaceable".

Thank you, regards,

Roy
