DF651

Information - Help
ID = 3402

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Vacuum Pentode
Identical to DF651 = CK549DX = 549DX
Similar Tubes
Heater different:
  CK538DX ; DF650
First year 1954 - - Manufacturers Literature Protona Minifon 53 mit DF651
First Source (s)
1954 : HdB d.Rdf-& Ferns-GrH 1954/55
Base Subminiatur (wire-ends, flat) B5A
Filament Vf 0.625 Volts / If 0.01 Ampere / Direct / Battery =
Description

Serienauslieferung ab 1955, Ug2=9V; Ig2=9,5µA, S=0,068mA/V; Ri=5MOhm


Dimensions (WHD)
incl. pins / tip		 7 x 20 x 5 mm / 0.28 x 0.79 x 0.20 inch
Tube prices 1 Tube prices (visible for members only)
Information source

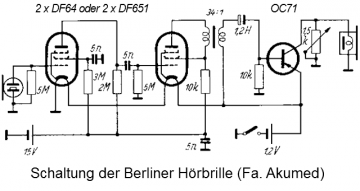

DF651: Akumed
Thomas Günzel † 1.8.22
df651_so.png DF651: rtt
Anonymous 10 Collector

Just Qvigstad 		df651_data1.png
DF651: Funkschau Röhrendokumente
Anonymous 10 Collector
More ...
Usage in Models 1= 1954 ; 1= 1955?? ; 2= 1955
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4

Collection of

Collection of a member from FIN
Siegfried Neumann (D)
Trev Levick (D)
Otto Frosinn (D)
Collection of a member from D
Karl-Heinz Entrich † 7.21 (D)


DF651

Forum contributions about this tube
DF651
Threads: 1 | Posts: 3
Hits: 3765     Replies: 2
DF651
Trev Levick
22.May.05 		  1
DF651
Abmessungen (BHT)7x20x5mm - Eine sehr kleine Röhre!
Siehe Foto.

Gruß Trevor
Hans-Thomas Schmidt
22.May.05 		  2
No subject
Vielen Dank, Herr Levick, die Werte wurden in das Röhrendatenblatt übernommen.

Schönen Abend noch, H.-T. Schmidt
Trev Levick
23.May.05 		  3
No subject
Herr Schmidt,

danke für die Ergänzung!
Ich habe noch keine kleinere deutsche Röhre gesehen.

Gruß Trevor

DF651
End of forum contributions about this tube
