ECC2000

Information - Help
ID = 18567

Country:
Great Britain (UK)
Brand: Mullard Radio Valve Co. Ltd.;
Developer: Mullard Radio Valve Co. Ltd.;
Tube type:  Double Triode
Identical to ECC2000
First Source (s)
Jul.1963 : Funkschau # 12

Base Dekal, B10C
Filament Vf 6.3 Volts / If 0.335 Ampere / Indirect / Parallel / series AC/DC

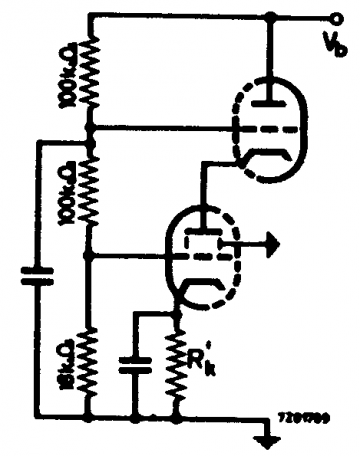

Description Special Quality valve for stable characteristics and long life. Base is B10B. Intended for use as a cascode amplifier without neutralisation up to 300MHz. This is achieved by an internal screen on one section and brought out to pin 1.
Dimensions (WHD)
incl. pins / tip
22 x 56 x 22 mm / 0.87 x 2.20 x 0.87 inch
Weight 11 g / 0.39 oz
Tube prices 3 Tube prices (visible for members only)
Literature -- Original-techn. papers.
  ECC2000: Telefunken Laborbuch Band 4 Franzis-Verlag
Heinz Höger

ECC2000
Eddie King


ECC2000: Telefunken Röhrenhandbuch
Wolfgang Bauer


ECC2000: Telefunken Röhrenhandbuch
Wolfgang Bauer


Usage in Models 2= 1965 ; 1= 1966?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
