GF105

Information - Help
ID = 36115

Country:
Germany
Brand: Werk für Bauelemente der Nachrichtentechnik (WBN), Teltow, VEB, RFT (Ostd.) - vorm. DRALOWID
Developer: Werk für Bauelemente der Nachrichtentechnik (WBN), Teltow, VEB, RFT (Ostd.) - vorm. DRALOWID
Tube type:  Transistor   Frequency converter
Identical to GF105
Similar Tubes
Other shape (e.g. bulb type):
  OC872
Normally replaceable-slightly different:
  2SA15 ; AF101 ; OC410 ; OC44
First Source (s)
Mar.1963 : -- Collector info (Sammler)
Predecessor Tubes OC872

Base Wires
Filament Solid State
Description PNP germanium junction transistor intended as AM broadcast mixer / oscillator.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 10 x mm / 0.24 x 0.39 x inch
Weight 1 g / 0.04 oz
Information source

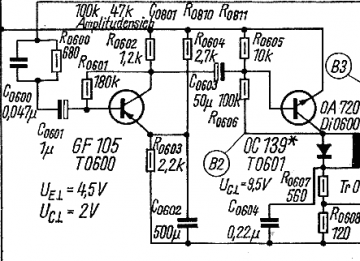

  GF105: Schema: K 67
Egon Strampe

GF105: aus eigener Sammlung
Karl-Heinz Entrich


GF105: TVT 73
Günther Stabe † 19.8.20


GF105: Hersteller
Andreas Hahn


Usage in Models 1= 1965?? ; 1= 1965? ; 1= 1968?? ; 1= 1970

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
