KA7226

Information - Help
ID = 60268

Country:
South Korea
Brand: Common type South Korea tube/semicond.
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to KA7226

Base SPECIAL TUBEBASE in general
Filament Solid State
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case: DIP-14;

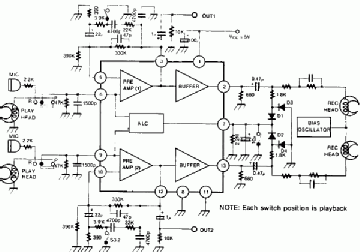

Type/application: Dual Equalizer Amplifier with ALC;
Daten/electr.data: Vcc: 3...16 V; Iq: 10 mA; Pd: <600 mW; t op: -25...+75 °C;
Manufactured by Samsung (RoK) -


Dimensions (WHD)
incl. pins / tip
18 x 7 x 8 mm / 0.71 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Samsung
  KA7226: Samsung
Günther Stabe † 19.8.20

KA7226: R.Osterkamp
Rudolf Osterkamp


KA7226: TTT Steidle 1981
Günther Stabe † 19.8.20


KA7226: Samsung
Günther Stabe † 19.8.20
