LA4700

Information - Help
ID = 45982

Country:
Japan
Brand: Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Tube type:  IC - Integrated Circuit   Power/Output
Identical to LA4700

Base Wires
Description Aufbau/Content: IC (__ Trans., __ Widerst., __ Dioden);
Form/Case: SIP-18;
Type: AF Power amplifier 12 W (THD: 10%) for car-stereo;
Data: Umax: 16 V; Iq: 140 mA; Imax (peak): 4 A per channel; Pd: 37.5 W; R L: 4...8 Ohm; tmax op.: 75 °C;
Dimensions (WHD)
incl. pins / tip
37 x 15 x 5 mm / 1.46 x 0.59 x 0.20 inch
Weight 4 g / 0.14 oz
Information source - - Manufacturers Literature   Sanyo

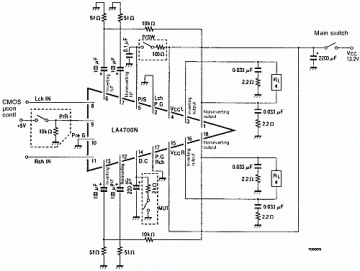

LA4700: Sanyo
Günther Stabe † 19.8.20

la4700_s.gif LA4700: Sanyo
Günther Stabe † 19.8.20

LA4700: Sanyo
Günther Stabe † 19.8.20
