LM323

Information - Help
ID = 36141

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to LM323
Similar Tubes
Different maximum ratings:
  LM309
First Source (s)
Mar.1978 : -- Collector info (Sammler)

Base Wires
Description

Aufbau/Content: IC (27 Trans., 26 Widerst., 2 Kond., 3 Dioden);
Form/Case/Outline: TO-3 (LM323K | LM123K);
Type/Application: 3-terminal positive voltage regulator 5V;
Daten/electr.data: U in: <20 V; U out: 5 V +/- 0.2 V; U in min= U out + 3 V; Imax: 3 A; t op: 0...+125 °C.
Varianten: LM123[K] = t op: -55...+150 °C; LM323A[K] = t op: -40...+125 °C;
Manufactured by NSC - National Semiconductor Corp., USA;
Ähnlich/similar: SH0323KC, ...
-


Dimensions (WHD)
incl. pins / tip
27 x 39 x 10 mm / 1.06 x 1.54 x 0.39 inch
Weight 10 g / 0.35 oz
Information source -- Original-techn. papers.

LM323: HW Elektronik
Günther Stabe † 19.8.20

a78xxk_s_1.gif LM323: Elektor 1977
Günther Stabe † 19.8.20

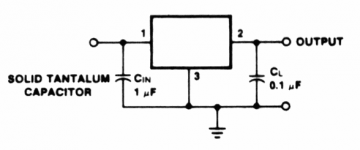

LM323: National Semiconductor
Günther Stabe † 19.8.20
