Micro-Bigril_R43

Information - Help
ID = 21480

Country:
France
Brand: La Radiotechnique (RT); Paris, Suresnes
Developer: Dario (tubes) - voir aussi La Radiotechnique
Tube type:  Dual-Grid Tetrode   Frequency converter
Identical to Micro-Bigril_R43 = Micro-Bigril = R43
Similar Tubes
Normally replaceable-slightly different:
  R43M
First year 1925 Saga of the Vacuumtube, Tyne page 402

Base Europe "B5 big size" (D, Bigrille)
Filament Vf 4 Volts / If 0.08 Ampere / Direct / Battery =
Description

Tyne: "Double-grid tubes came on the French market in 1924. At first they had tungsten filaments. By 1925 they were superseded by the dull-emitter version, space-charge rather than shield-grid tubes, and were first used in receivers at low anode voltage. Later they were used as frequency changers in superheterodynes. Examples of these are Métal's DG and RM, La Readiotechniaue's Micro-Bigril R43, and Grammont's Bigrille-Ampli and Bigrille BF." [EE]


  Micro-Bigril_R43: W.H.
Wolfgang Holtmann

Micro-Bigril_R43: Eigene Sammlung
Albert Vonarburg


Micro-Bigril_R43: W.H.
Wolfgang Holtmann

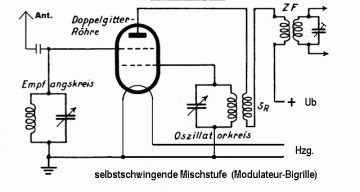

Micro-Bigril_R43: Banneitz, TB der drahtl. Teleph. 1927
Anonymous 15 Collector
