MTD5N05

Information - Help
ID = 81455

Country:
United States of America (USA)
Brand: Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Tube type:  Transistor   Power-supply
Identical to MTD5N05

Base Wires
Filament Solid State
Description

N-Channel TMOS Power FET, 50 V, 5 A, intended as power switch.
-


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
7 x 7 x 2 mm / 0.28 x 0.28 x 0.08 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature
  MTD5N05: Motorola
Günther Stabe † 19.8.20

MTD5N05: Sammlung Alois Wolf
Alois Wolf

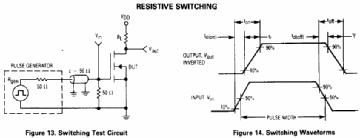

MTD5N05: Motorola
Günther Stabe † 19.8.20


MTD5N05: Motorola 02/89 Power MOS Databook
Alois Wolf
