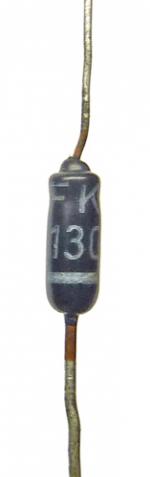

OA130

Information - Help
ID = 45767

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Solid-State-Diode   Universal
Identical to OA130
Similar Tubes
Normally replaceable-slightly different:
  BAX16 ; OA202
Other base and data slightly different:
  S34_Diode

Base Wires
Description Silicon junction diode for universal purpose.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
3 x 7 x mm / 0.12 x 0.28 x inch
Weight 1 g / 0.04 oz
Information source - - -   KTT 1969/70
- - -
- - -
- - -

OA130: Der Transistor I Franzis-Verlag
Heinz Höger

do7_71.gif OA130: DVT 1971 ECA
Günther Stabe † 19.8.20

OA130: Telefunken Datenbuch Halbleiter 1961
Harald Giese

More ...
Usage in Models 1= 1955?? ; 1= 1960

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):2
