OC1072

Information - Help
ID = 41005

Country:
Hungary
Brand: Tungsram; Budapest (see also British T.)
Tube type:  Transistor   Power/Output
Identical to OC1072
Similar Tubes
Normally replaceable-slightly different:
  OC72
Predecessor Tubes OC1071
Successor Tubes OC1074

Base Wires
Filament Solid State

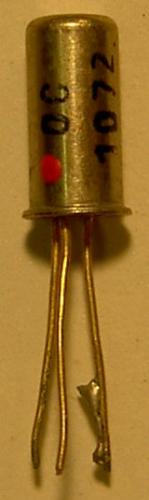

Description PNP germanium transistor intended as low power amplifier / switch in AF applications. All-glass body with heat sink. Red dot indicates collector.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 12 x mm / 0.24 x 0.47 x inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70

OC1072: CA
Christian ADAM


OC1072: TVT 73
Günther Stabe † 19.8.20



Usage in Models 2= 1961 ; 1= 1965? ; 2= 1965 ; 1= 1966 ; 2= 1969 ; 1= 1972?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):9
