OD603

Information - Help
ID = 33796

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Transistor   Power/Output
Identical to OD603
Similar Tubes
Other shape (e.g. bulb type):
  AD131 ; AD149 ; GD170
Normally replaceable-slightly different:
  THP50 ; THP51
Other base and data slightly different:
  OC835 ; OX7040 ; TJN300
First Source (s)
Mar.1958 : Telefunken-Zeitung
Successor Tubes AD149   OD604

Base Wires
Filament Solid State
Description PNP germanium junction transistor for AF medium power amplifier applications. Metal case (pot), wires: blank=C, green=E, yellow=B. A suitable fastening is required.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
19 x 9 x mm / 0.75 x 0.35 x inch
Weight 12 g / 0.42 oz
Literature -- Collector info (Sammler)   KTT 1969/70

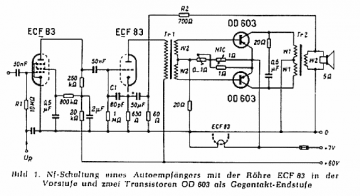

  OD603: Funkschau 1960
Günther Stabe

OD603
Siegfried Neumann


OD603: TVT 1979 ECA München
Günther Stabe


OD603: Telefunken Transistoren 1961
Thomas Günzel


Usage in Models 2= 1958 ; 3= 1959 ; 1= 1960? ; 1= 1961 ; 1= 1963?? ; 1= 1963? ; 1= 1969?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):10
