PQ05RF21

Information - Help
ID = 56551

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to PQ05RF21

Base Wires
Filament Solid State
Description Aufbau/Content: IC (__ Trans., __ Widerst., __ Kond., __ Dioden);

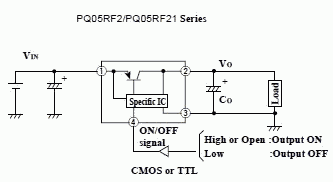

Form/Case: ~ TO-220, 4 Pins: DC in - DC out - GND - On/Off Ctrl;
Type: 4-terminal 2A positive low power / loss voltage regulator with reset;
Data: V in max: 35 V; I out: 5 V +/- 2.5 %; Imax out: 2 A; Ptot: 18 W; tmax j: 150 °C.
Variants: PQ05RF2 (+/- 5 %) / PQ05RF2V (ripple rejection improved, minute adjustment +/- 10 %);
PQ09RF2... = 9 V, PQ12RF2... = 12 V, PQ15RF2... = 15 V Vout;
Manufactured by Sharp (J) -
Dimensions (WHD)
incl. pins / tip
10 x 17 x 5 mm / 0.39 x 0.67 x 0.20 inch
Weight 2 g / 0.07 oz
Information source - - -
- - Manufacturers Literature   Sharp
- - -
- - -
  PQ05RF21: Sharp
Günther Stabe † 19.8.20

PQ05RF21: Eigene Sammlung
Egon Strampe


PQ05RF21: Sharp
Günther Stabe † 19.8.20


PQ05RF21: Sharp
Günther Stabe † 19.8.20
