PQ05RH11

Information - Help
ID = 68169

Country:
Japan
Brand: Common type Japan tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to PQ05RH11

Base Wires
Description

Aufbau/Content: IC (__ Trans., __ Widerst., __ Kond., __ Dioden);

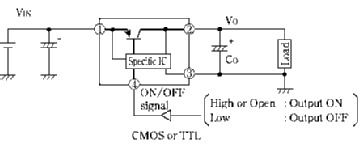

Form/Case/Outline: ~ TO-220-Iso, 4 Pins: DC in - DC out - GND - On/Off Ctrl;
Type/Application: 4-terminal 1.5 A positive low Power / loss Voltage Regulator with Reset, Dropout: 0.5 V;
Daten/electr.data: V in max: 35 V; I out: 5 V +/- 2.5 %; Imax out: 1.5 A; Ptot: 18 W; tmax j: 150 °C; t op: -20...+80 °C;
Variants: PQ05RH1 (+/- 5 %); PQ09RH1[1] = 9 V, PQ12RH1[1] = 12 V Vout;
Manufactured by Sharp (J) -


Dimensions (WHD)
incl. pins / tip
10 x 17 x 5 mm / 0.39 x 0.67 x 0.20 inch
Weight 2 g / 0.07 oz
