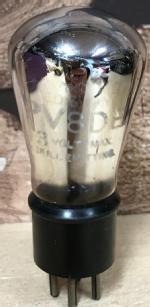

PV8DE

Information - Help
ID = 30820

Country:
Great Britain (UK)
Brand: Ediswan, Siemens Edison Swan Electric Co.; London
Tube type:  Triode, vacuum   Power/Output
Identical to PV8DE
First year 1925 History of the British Radio Valve to 1940 p. 158
First Source (s)
1925 : Saga of the Vacuum Tube, Tyne p.373
1925 : British Radio Valves - The Vintage Years: 1904-1925 p.50

Base Europe 4-Pin B4 (Eu A, E, 4A) 1914
Was used by Radio/TV-reception etc.
Filament Vf 3 Volts / If 0.12 Ampere / Direct / Battery =
Information source

b4_base_pins~~231.png PV8DE: Fin Stewart
Fin Stewart


Just Qvigstad
PV8DE: Banneitz, TB der drahtl. Teleph. 1927
Anonymous 15 Collector



PV8DE
