R18_Brimar

Information - Help
ID = 27877

Country:
Great Britain (UK)
Brand: Brimar (STC); Foots Cray
Tube type:  Half-Wave Vacuum Rectifier   Power-supply
Identical to R18_Brimar

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 6.3 Volts / If 1.1 Ampere / Indirect / Specified voltage AC/DC

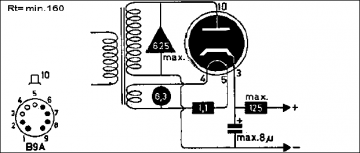

Description 1.8kV 0.9A peak. Typically 625V rms input 125mA mean current output.
Information source -- Original-techn. papers.
- - -
- - -
- - -

R18_Brimar: Internet
Miguel Angel Trujillo-Rodriguez

r18_brimar_so.png R18_Brimar: rtt
Anonymous 10 Collector

More ...

Just Qvigstad
R18_Brimar: Brimar Valve and CRT Manual No.10
Adrian Riesen

More ...

Collection of

Collection of a member from FIN


R18_Brimar
