RS245

Information - Help
ID = 16344

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Transmitting Triode, air cooled   VHF
Identical to RS245

Base Europe 4-Pin B4 (Eu A, E, 4A) 1914 (Codex=Ew)
Filament Vf 2 Volts / If 1.7 Ampere / Direct
Description 6 Watt Senderöhre (UKW: 1 Watt) Telefunken RS245 (RS 245)
Dimensions (WHD)
incl. pins / tip
70 x 117 x mm / 2.76 x 4.61 x inch
Weight 65 g / 2.29 oz
Tube prices 4 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

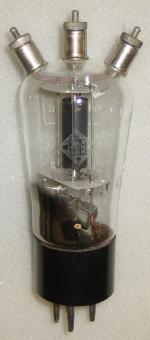

RS245: Eigenes Bild
Anonymous 971 Collector


RS245: rtt
Michael Schlör


RS245: Telefunken
Robert Schmalstieg


from Just Qvigstad
