RS266g

Information - Help
ID = 21205

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Transmitter Triode, liquid-cooling   Power/Output
Identical to RS266g

Base No base Side contacts.
Filament Vf 35 Volts / If 115 Ampere / Direct
Description Gemäss dem Blatt "Allgemeine Daten" ist die 50 kW-Senderöhre Telefunken RS266 (RS 266) mit Wasser gekühlt. Die RS266g ist nur in Details (z.B. If) anders.

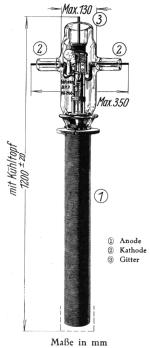

Dimensions (WHD)
incl. pins / tip
350 x 1200 x 130 mm / 13.78 x 47.24 x 5.12 inch
Weight 23000 g / 811.30 oz

RS266g: Tfk Datenblatt
Heribert Jung
