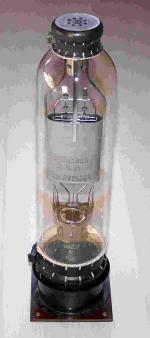

RV2300

Information - Help
ID = 2203

Country:
Germany
Brand: Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Tube type:  Transmitting Triode, air cooled
Identical to RV2300
First year 1928 Tube leaflet collection E.Erb Analysis by original leaflets

Base SPECIAL TUBEBASE in general (Codex=sp)
Filament Vf 21 Volts / If 13 Ampere
Description Kraftverstärkerröhre von Telefunken. Entspricht der RV230.
Tube prices 1 Tube prices (visible for members only)
Literature Taschenbuch zum Röhren-Codex 1948/49

RV2300: J. klähr
René Klähr


RV2300: Schneider Röhrentabelle, 1946
Anonymous 15 Collector



Usage in Models 1= 1936? ; 1= 1937?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):2
