ID = 78759

Country:
United States of America (USA)
Brand: Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Tube type:  IC - Integrated Circuit
Identical to S100111002

Base Wires
Description

Aufbau/Content: IC (Bipolar ?);

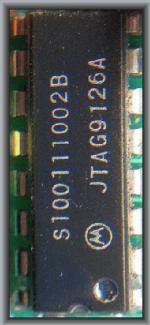

Form/Case/Outline: DIP-16 (S100111002[B]);
Application/Type: - ? - ;
Daten/electr.data: Vcc: __V; Icc: __ mA; Pd: __ mW; t op: -__...+__ °C;
-


Dimensions (WHD)
incl. pins / tip
21 x 7 x 8 mm / 0.83 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz

Collection of
