SG6841

Information - Help
ID = 68561

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  IC - Integrated Circuit   Power-supply
Identical to SG6841

Base SPECIAL TUBEBASE in general
Description

Aufbau/internal: IC (__ Trans., __ Widerst., __ Dioden, __ Kond.);
Form/Case/Outline: DIP-8 (SG6841D) | SOP-8 (SG6841S);

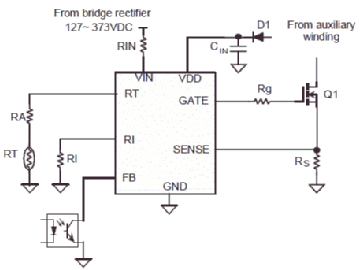

Type/Application: High-integrated Green-mode PWM Controller;
Daten/electr.data: Vdd: <20 V; Idd: <5 mA; Iout max: 0.5 A; Pd: <1 W; f osc: 65 kHz; t amb: -20...+85 °C;
Developed by System General Corp. (USA)
-
