SL6310

Information - Help
ID = 81888

Country:
Great Britain (UK)
Brand: GEC, General Electric Co.; London
Tube type:  IC - Integrated Circuit   Power/Output
Identical to SL6310

Base Wires
Was used by Radio/TV-reception etc.
Filament Solid State
Description

Aufbau/Content: IC (__ Trans., __ Widerst.);
Form/Case/Outline: [TO-99] | DIP-8 (SL6310C) | SOP-8;
Type/Application: Switchable Audio Amplifier / OpAmp, 0.5 W @ 8 Ω (9 V);
Daten/electr.data: Vcc: 4.5 ... 13.6 V; Iccq: 4 mA @ 9 V; Pd: __ mW; Voltage gain: 70 dB; THD: 0.4 %; t op: -30...+85 °C;
Manufactured by GEC Plessey (GB)
-


Dimensions (WHD)
incl. pins / tip
9 x 7 x 8 mm / 0.35 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Plessey/Zarlink

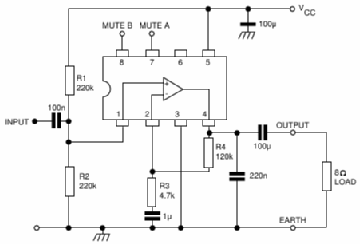

  SL6310: Plessey
Günther Stabe † 19.8.20
    More ...

SL6310: Sammlung Alois Wolf
Alois Wolf


SL6310: Plessey
Günther Stabe † 19.8.20



Usage in Models 1= 1980??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
