SP61

Information - Help
ID = 10279

Country:
Great Britain (UK)
Brand: Mazda = Valve (Tube) brand GB (see also France)
Developer: Mazda = Valve (Tube) brand GB (see also France)
Tube type:  Vacuum Pentode   RF/IF-Stage
  Ca. 1925 up to 1945 rare.
Identical to SP61 = CV118 = CV1065 = VR65 = ARP36 = VT200_GPO = VT200
Similar Tubes
Heater different:
  SP41 ; VR65A
Successor Tubes CV138   6P10

Base Octal-8 GB, (Mazda), K8B, MO (Codex=Vf)
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.65 Ampere / Indirect / Parallel, (AC/DC defined voltage)
Dimensions (WHD)
incl. pins / tip
x 95 x 33 mm / x 3.74 x 1.30 inch
Weight 34 g / 1.20 oz
Information source Taschenbuch zum Röhren-Codex 1948/49
Babani, International Radio Tube Encyclopaedia
Universal Vade-Mecum, Electron Valves and Semiconductor Devices

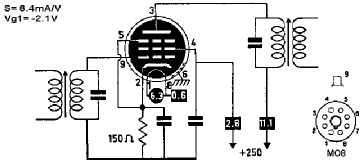

  SP61: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

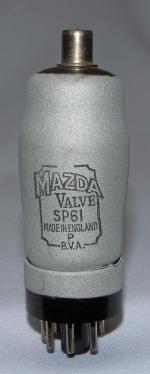

SP61: scc
Christian Schaufelberger


SP61: Manufacturer's Literature
Emilio Ciardiello


SP61: Original data sheet
Michael Poll


from Just Qvigstad

Usage in Models 1= 1948? ; 8= 1949 ; 2= 1950

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):11
