STK3041

Information - Help
ID = 65503

Country:
Japan
Brand: Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Tube type:  SEMICONDUCTOR, general   Power/Output
Identical to STK3041

Base Wires
Filament Solid State
Description

Material/Aufbau/Pol.: Silizium Dickfilm-Hybrid Pack (18 Trans., 14 Widerst., 4 Dioden, 4 Kond.);
Form/Case/Outline: SEP-16;
Anwendung/Application/Type: Voltage Amplifier (AF Power Amp 2 x 30 W ?);
Daten/electr.data: Vcc: +/- 36 V; Iccq: 30 mA; THD: max. 0.01 %; tmax c: 115 °C;
Tentative data - withdrawn -


Weight 20 g / 0.71 oz
Information source - - Manufacturers Literature   Sanyo

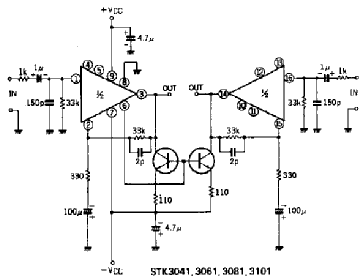

  STK3041: Sanyo
Günther Stabe

STK3041: Ebay:michaelwalther1946
Günther Stabe


STK3041: Sanyo
Günther Stabe


Usage in Models 1= 1982

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1
