TA41

Information - Help
ID = 13077

Country:
France
Brand: Dario (tubes) - voir aussi La Radiotechnique

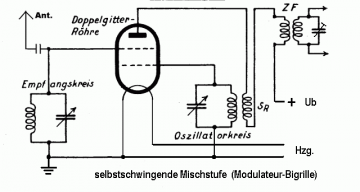

Tube type:  Dual-Grid Tetrode   Frequency converter
Identical to TA41

Base Europe "B5 big size" (D, Bigrille) (Codex=Eu)
Filament Vf 4 Volts / If 0.08 Ampere / Direct / Battery =
Dimensions (WHD)
incl. pins / tip
45 x 107 x 35 mm / 1.77 x 4.21 x 1.38 inch
Weight 47 g / 1.66 oz
Information source Taschenbuch zum Röhren-Codex 1948/49

TA41: DRB 55
Wolfgang Holtmann

tubesockel_klein_bigrillem_3_6.gif TA41: W.H.
Wolfgang Holtmann
