TC9164

Information - Help
ID = 57888

Country:
Japan
Brand: Toshiba Corporation; Tokyo
Tube type:  IC - Integrated Circuit
Identical to TC9164
Similar Tubes
Other base:
  TC9162 ; TC9163

Base Wires
Description

Aufbau/Content: IC (CMOS);
Form/Case/Outline: SDIP-28 (TC9164AN) | SSOP-28 (TC9164AF);
Type/Application: High Voltage Analog Function Switch Array, 16 circuits;
Daten/electr.data: Vdd: 8...16 V (Single Supply); Idd: 0.1 mA; Pd: <300 mW; t op: -40...+85 °C
-


Dimensions (WHD)
incl. pins / tip
26 x 6 x 10 mm / 1.02 x 0.24 x 0.39 inch
Weight 2 g / 0.07 oz
Information source - - Manufacturers Literature

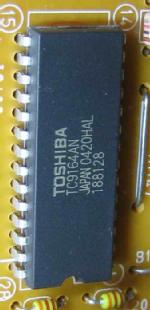

tc9164_s.png TC9164: Toshiba
Günther Stabe † 19.8.20

TC9164: Toshiba
Günther Stabe † 19.8.20
