TCA900

Information - Help
ID = 43671

Country:
Italy
Brand: ATES Componenti Elettronici, Milano
Tube type:  IC - Integrated Circuit   Power-supply
Identical to TCA900
Similar Tubes
Normally replaceable-slightly different:
  TCA600
Different maximum ratings:
  TCA910

Base Wires
Filament Solid State
Description

Aufbau/Content: IC (14 Trans., 9 Widerst., 4 Dioden);
Form/Case: ~ TO-126 (TCA900 / TCA900B);

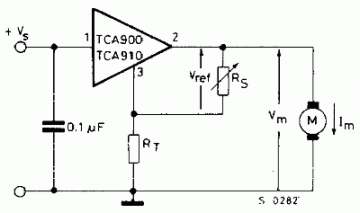

Applikation/Type: Tape Recorder Motor Control;
Daten/electr.data: Vcc max: 14 V; Ptot: <800 mW; t op: -__...+__ °C.
-


Dimensions (WHD)
incl. pins / tip
8 x 10 x 3 mm / 0.31 x 0.39 x 0.12 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   ATES
  TCA900: SGS-ATES
Günther Stabe

TCA900
Karlheinz Fischer


TCA900: SGS-ATES
Günther Stabe


TCA900: SGS-ATES
Günther Stabe


Usage in Models 2= 1976?? ; 1= 1976? ; 6= 1976 ; 2= 1977? ; 9= 1977 ; 1= 1978?? ; 1= 1978? ; 19= 1978 ; 1= 1981? ; 1= 1985??

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):43
