TD6301

Information - Help
ID = 50194

Country:
Japan
Brand: Toshiba Corporation; Tokyo
Tube type:  IC - Integrated Circuit   Indication
Identical to TD6301
Base SPECIAL TUBEBASE in general
Description Aufbau/Content: LSI-IC (I²L Digital);
Form/Case: DIP-28 (TD6301AP) | SDIP-30 TD6301AN);

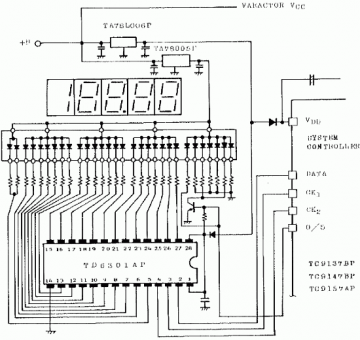

Type: Static 7-segment display driver (LED | Flourescent Lamp | LCD, with Darlington output) - in combination with TC9146 / => TC9147(BP) Static FM/LW/MW 3 Bands Digital Tuning System (DTS-6 / DTS-8) and prescaler => TD6104(P);
Data: Vcc: 5 V; Icc: 16 mA; Pd: <1 W; IoL max: 20 mA; Voh max: 20 V; f op: <120 kHz; t op: -30...+75 °C;
-
Dimensions (WHD)
incl. pins / tip		 37 x 7 x 14 mm / 1.46 x 0.28 x 0.55 inch
Weight 4 g / 0.14 oz
Information source - - Manufacturers Literature
TD6301
Günther Stabe † 19.8.20     More ...
dip28_14.gif TD6301
Günther Stabe † 19.8.20
More ...
TD6301: Toshiba
Günther Stabe † 19.8.20
Usage in Models 1= 1981 ; 2= 1982 ; 1= 1983
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
