TDA1190

Information - Help
ID = 61628

Country:
France
Brand: Thomson (marque), Thomson-Houston (CFTH, Mazda); Paris
Tube type:  IC - Integrated Circuit   Power/Output
Identical to TDA1190 = 221-98 = NTE1231

Base Wires
Filament Solid State
Description

Aufbau/internal: IC (48 Trans., 44 Widerst., 10 Dioden, 4 Kond.);
Form/Case/Outline: DIP-12-F;
Type/Application: TV Sound System: IF, Demodulator, AF Power Amplifier 4.2 W @ 16 Ω (24 V) or 1.5 W @ 8 Ω (12 V);
Daten/electr.data: Vcc: 9...28 V; Icc: <35 mA; Io max: 1.5 A; Ptot: 5 W; tmax j: 150 °C ;
Developed and manufactured by SGS-ATES (SGS Thomson - ST)
-


Dimensions (WHD)
incl. pins / tip
20 x 7 x 8 mm / 0.79 x 0.28 x 0.31 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   SGS

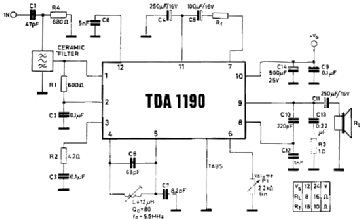

  TDA1190: SGS
Günther Stabe

TDA1190: Eigene Sammlung
Egon Strampe


TDA1190: SGS
Günther Stabe


TDA1190: SGS
Günther Stabe


Usage in Models 1= 1979?? ; 1= 1979? ; 1= 1981

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):3
